Thick paper counting machine

Applicable Industries: Manufacturing Plant, Printing Shops
Model: WDLSZJ-2 Thick paper counting machine
Factory: Rui'an Wondly Printing Machinery Co, Ltd 【Made in China】
Wondly Machinery is the China professional manufacturer of Automatic paper counting machine
WDLSZJ-2 paper counting machine has realized the new construction concept of no folding Angle and no bending Angle in the process of counting, and has realized to count the paper 80-400gsm, breaking through the traditional paper counting machine based on counting thin paper.

>> Details of Fully automatic Thick paper counting machine

· Paper counting speed up to 1500 sheets/min.
· Wide range of paper specifications, suitable for 80 ~ 400g/㎡ paper, such as paper plate, lithography paper, coated paper, sheet paper, etc.
· With the double-blade counting mechanism, the paper can be accurately counted without leaving any damage or marks at the corners of the paper. This function makes WDLSZJ-2 of thick paper counting machine the best model for pre-factory inspection of finished paper.
· Supports equal and non-equal tag insertion mode, applicable to a variety of flexible and variable tag interval application scenarios.
· 10.2 inch large touch screen, intuitive and friendly human-computer interaction design, simple and easy to understand operation mode, hierarchical and classified menu function interface, and easy to use fault diagnosis mode.

· Achieved the no-adjustment function of air pressure and balance hardware, one-click self-adaptation of machine balance software, and software setting of air pressure parameters, greatly simplifying the daily operation and use of users.

>> Professional Fully automatic Thick paper counting machine manufacturer

Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

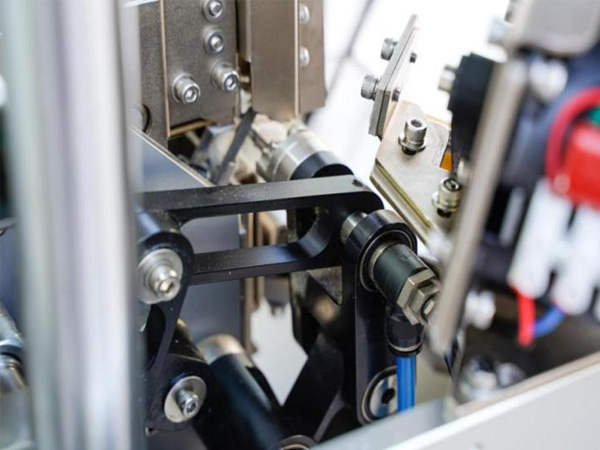

Structure of paper counting parts

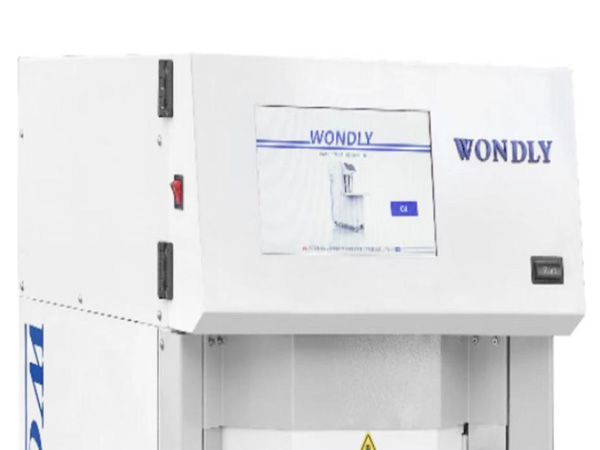

Adopting imported AMT touch screen computer

British original damping

>> Product Parameters

Paper thickness range	30 ～ 210g/m （ Carbon paper,offset printing paper, coated paper,etc.）
paper size	Min.100X150mm、Max 546X788mm
paper stacking height	300mm（Max）
Power Supply/voltage	AC220±10V、50Hz
Collecting table width	580X900mm
Collecting table width height	760mm
Machine size	900（W）X1080（L）X1500（H）
machine weight	230kg
label for paper in pile	Width 6mm、Length 100m
consumed power	600W

>> Paper counting machine FAQ :

1. Q: Are you a paper counting machine manufacturer ?
A: Yes we have been paper counting machine manufacturer such machines over 20 years .
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service.
