Book paper Cutting Machine


QZYK1300DF Book paper Cutting Machine

Fully automatic Book paper Cutting Machine is used to cut the printing paper of various kinds, paper products, etc



Inquiry

Detailed

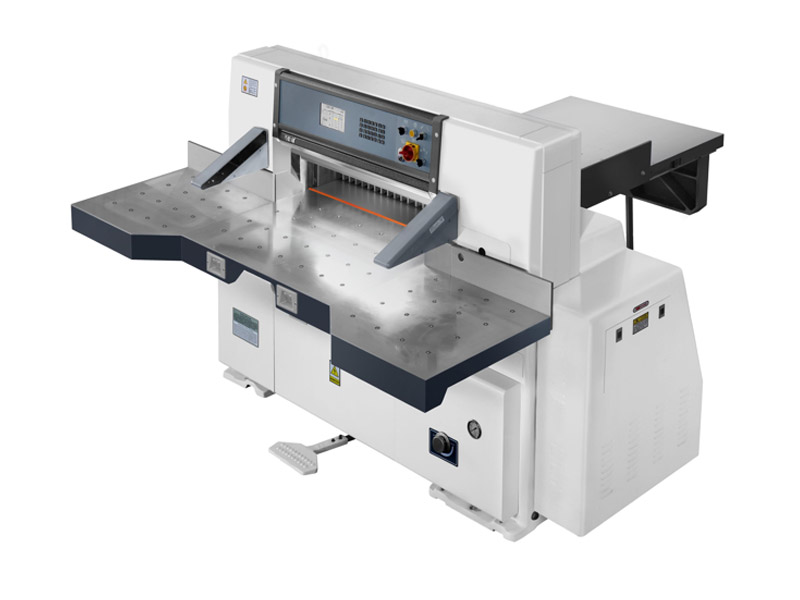

Book paper Cutting Machine

Book paper Cutting Machine is used to cut the printing paper of various kinds, paper products, etc.
Applicable Industries: Manufacturing Plant, Printing Shops

Model: QZYK1300DF Book paper Cutting Machine
Factory: Made in China
Wondly Machinery  is the China professional manufacturer of paper cutting machine



    >> Details of Book paper Cutting Machine

.
Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction.

. The Taiwan 10.4 -inch color LCD touch screen display
. Computer interface using user-friendly design, allows the operator to easily operate
. Servois used as paper feeding systemand locateon presicion up to ±0.01mm
. Full machine control part of the main low-voltage electrical appliances imported Schneider.
. Hydraulic some of the pressure adjustable.
. Cutting precision, user-friendly maintenance.
. The frame structure of the international popular split, effectively increasing the machine
. Chrome work platform, saving the user's maintenance time, extend its life.
. Work platform equipped with inflatable structures to facilitate the pushing of paper and feed.
. With a highly reliable protection of the six groups of grating, ensuring operator safety.
. Hook-like structure mounted knife, make easy work tool changes

    >> Professional Fully automatic Book paper Cutting Machine manufacturer


Our Product

Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine  etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.


Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.


    >> Product Detail Images

10.4 Touch screen
Centralized refueling on the workbench
Vertical linkage of paper press
Cutting paper fibers




    >> Product Parameters


Cuttign width

130 cm

Cutting height

13 cm

Cutting length

130cm

Main motor power

4.0kw

Weight

3800kg

width with sideway

280cm

/

250cm

Lehgth

249cm

Table height

90cm

Cutting speed

45times

Overall dimensions

280*145*191cm

Voltage(three-phase)

361-399V

Wire size

2.5mm2
