Fully automatic High speed paper counting machine

This Fully automatic High speed paper counting machine is the flagship product of our company’s intelligent high-end equipment.

Model: WDLSZJ-1 Fully automatic High speed paper counting machine

This Fully automatic High speed paper counting machine is the flagship product of our company’s intelligent high-end equipment.
High speed paper counting machine is intelligent device for automatic paper counting and label insertion.
It includes industrial computer with 10 inch touch color screen for convenient human-computer interaction and stable and low noise imported brand high-end servo motor.

>> Details of Fully automatic High speed paper counting machine

Overview of paper counting machine model 2500：

(1) This paper counting machine is the flagship product of our company's intelligent high-end equipment. It is intelligent device for automatic paper counting and label insertion. It includes industrial computer with 10.2 inch touch color screen for convenient human-computer interaction and stable and low noise imported brand high-end servo motor.

(2) It performs max 2500 sheets/min counting speed. It can count all kinds of conventional paper accurately and at high speed, but the special paper not included.

(3) It supports modes of paper equal division and customized division. In the customized mode, 999 program groups can be stored, and each group can put 999 data units. In equal division mode, circularly and appointing paper label insertion functions are supported. In customized division mode, program with random data of paper label is supported.

(4) This paper counting machine supports balancing hardware adjustment free function. It just needs one button click and the balance adjustment job is finished by system software when the machine is moved.

(5) The paper counting machine supports the function of air pressure hardware adjustment free. It just needs one button click and the air pressure hardware adjustment job is finished by system software when the specification of paper is changed.

(6) It supports Self failure diagnosis function. Customer could clearly get the failure information on the screen.

(7) Label function is fast, stable, accurately. The label device supports easy replacement.

>> Professional Fully automatic High speed paper counting machine manufacturer

Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

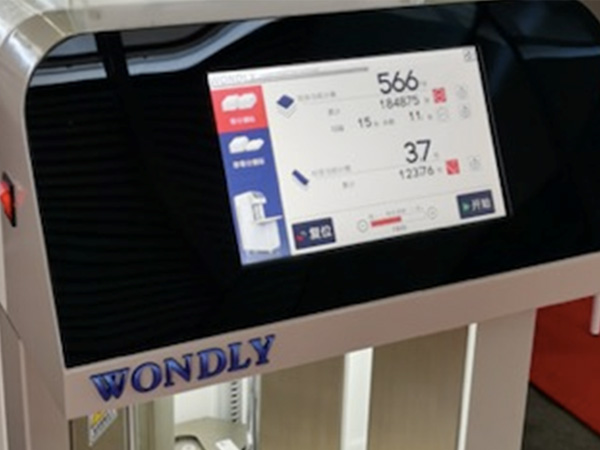

10.2 inch true color industrial touch screen

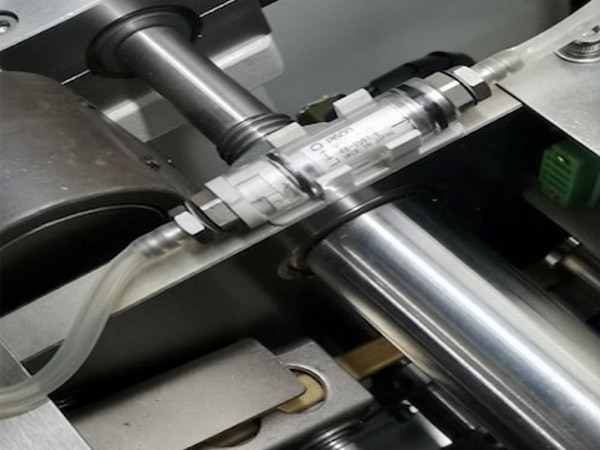

Adopt Japanese original air filtration

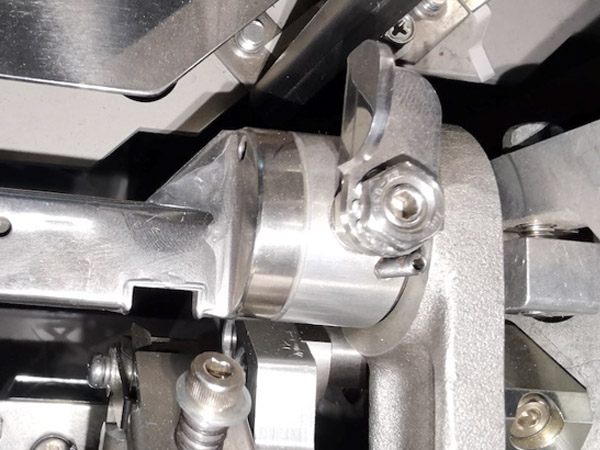

Easy to replace blade structure

Japan Orion vacuum pump

>> Product Parameters

paper thickness range	22～230g/m（Carbon paper,offset printing paper, coated paper,etc.）
Maximum paper speed	2500 sheets per minute
Paper size	Min.100X150mm、Max 545X788mm
Paper stacking height	300mm（Max）
Power Supply/voltage	AC220±10V、50Hz
Motor	0.4KW
Collecting table width	580X900mm
Collecting table width height	760mm
Machine size	900（W）X1080（L）X1500（H）
Machine weight	230kg
Label for paper in pile	Width 6mm、Length 100m
Consumed power ;	600W

>> Paper counting machine FAQ :

1. Q: Are you a paper counting machine manufacturer ?
A: Yes we have been paper counting machine manufacturer such machines over 20 years .
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service
