paper Jogger machine

JP-2 paper Jogger machine has some functions for running paper,cleaning up paper and driving air.

Jogger machine can clean up quickly all type materials paper and other materials which similar with paper surface,to heighten working efficiency and to short working time.
The working table makes up of air cushion device,vibration electromotor,press paper rod,driving air idler wheel, ejecting air pump.The programmable controller to finish whole process of running paper, easily operate.
So the Auto paper Jogger machine has such as excellences:advanced the technology of cleaning up the paper,Left and right baffle-plate auto,exhaust automatically high efficiency,and high stability.

>> Details of paper Jogger machine

1.Prepares cut material specifically for cutter cutting.
2.It ensures the continuity of cutting and greatly improves the output of materials.
3.JP-2 paper Jogger machine model has automatic double exhaust function. According to different paper, you can choose 4 different inclination angles on the left and right, and straighten the paper, which greatly improves the cutting accuracy and lays a solid foundation for the quality of the final product.
4.With left, middle and right shaking function, it has a particularly obvious effect on the finishing of special paper (thin paper), saving time and effort and increasing efficiency.
5.The safety circuit design conforms to the EU safety level, which protects your operation safety and keeps you away from danger at all times.

6.The chrome-plated working platform saves the user’s maintenance time.

>> Professional Automatic paper Jogger machine manufacturer

Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

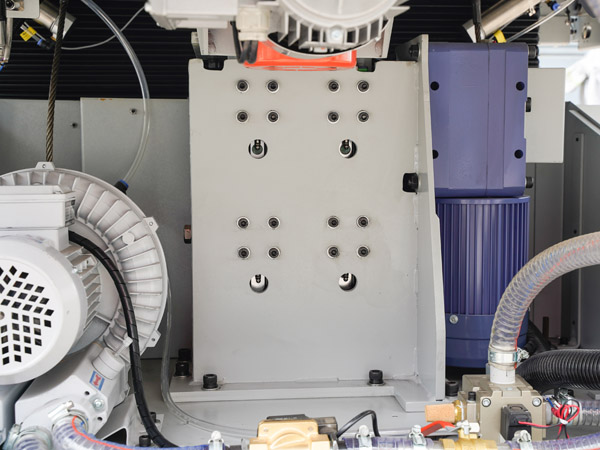

Orbit

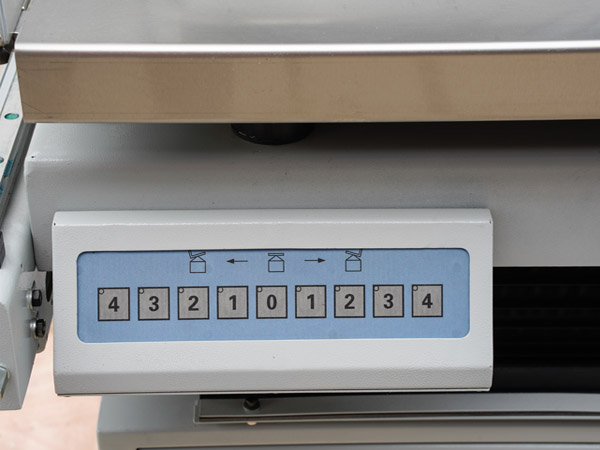

Control Panel

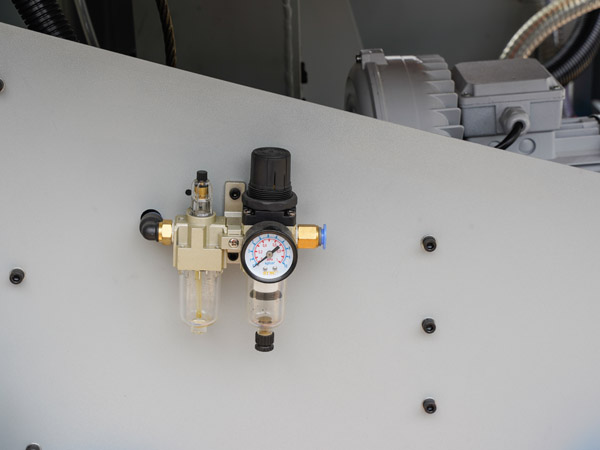

Regulating valve

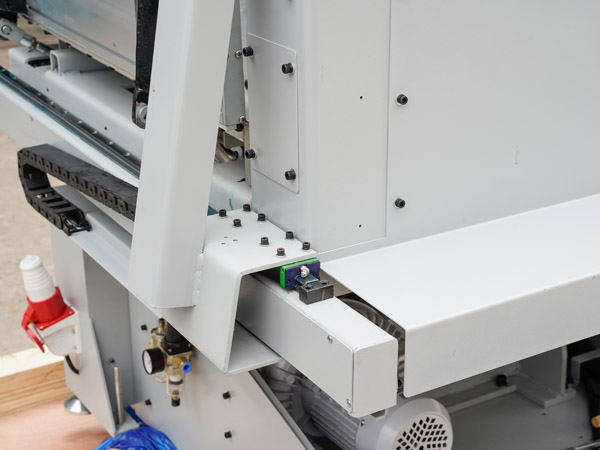

vibrators

>> Product Parameters

Table length（Y） [mm/in]	1150/45.28
Table width (X) [mm/in]	900/35.43
Machine width(B) [mm/in]	1550/61.02
Machine length(A) [mm/in]	1290/50.79
Machine height [mm/in]	1875/73.82
Machine weight [kg]	600
Minimum stack height [mm/in]	30/1.18
stack height [mm/in]	165/6.5
Minimum table height [mm/in]	860/33.86
table top height [mm/in]	950/37.40

>> Paper counting machine FAQ :

1. Q: Are you a paper counting machine manufacturer ?
A: Yes we have been paper counting machine manufacturer such machines over 20 years .
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service
