Automatic hydraulic elevator

Functions and configuration of automatic hydraulic elevator LT-2:

The automatic elevators produced by our company have humanized characteristics. The operator can transfer the material into the paper cutting machine or the paper punching machine at any comfortable height.

Automatic hydraulic elevator is also suitable for stacking cut materials, thus reducing the labor intensity of the operator and improving production efficiency.

The electrical components and infrared light control of the safety system of our company's automatic elevators use international brands such as Schneider and Omron from France or Germany. The linear guide rail of the lifting system adopts the Taiwan, China brand TBI.

The blade pump of the hydraulic system adopts the Chinese brand Xianju Yongling. The oil circuit board is made of high hardness materials. The control valve adopts advanced plug-in valves. Only high configuration can provide high-quality and safe performance.

>> Professional Automatic Wallpaper Page Counting Machine manufacturer

Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

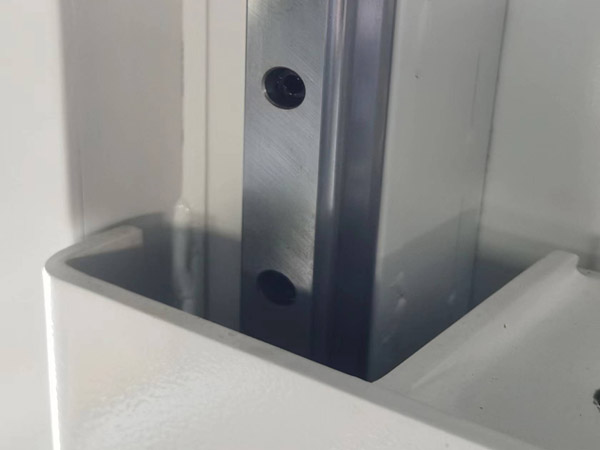

Guide rail

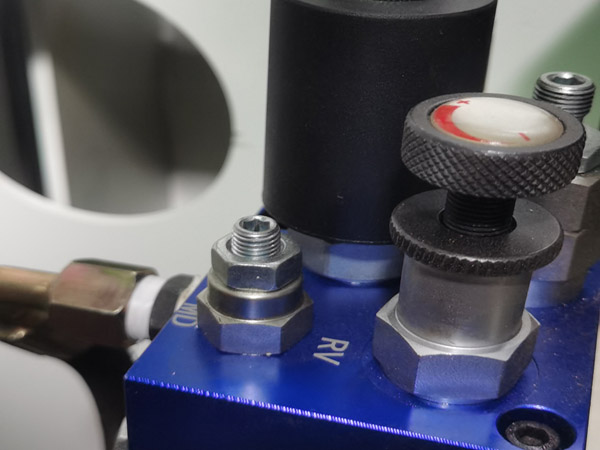

Hydraulic system

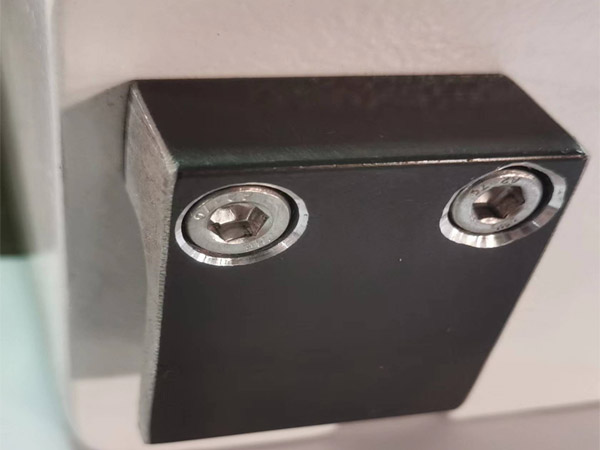

Infrared protection

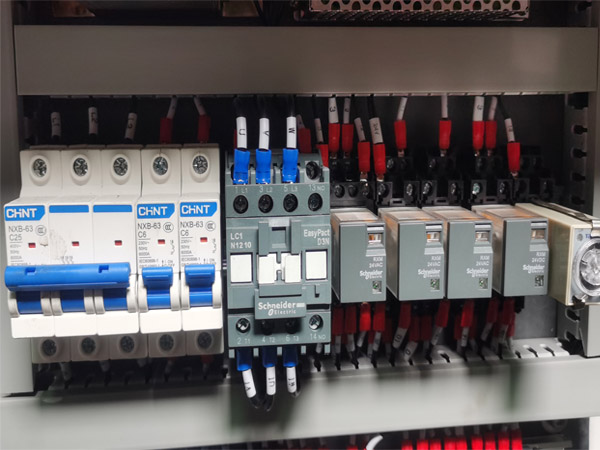

Distribution boxes

>> Paper counting machine FAQ :

Model	LT-2	LT-3
Pallrtsize,max	94×132	170X124
Stoke up to	85	85
Carring capatit.Max	1000	1200
Power consumption	1.1	1.5
Voltage	380V50HZ	380V50HZ
Space recuired(wirh pallet)	165×150X150	200X175X150
Net weight	800	1200
Height	150	150

>> Paper counting machine FAQ :

1. Q: Are you a paper counting machine manufacturer ?
A: Yes we have been paper counting machine manufacturer such machines over 20 years .
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service
