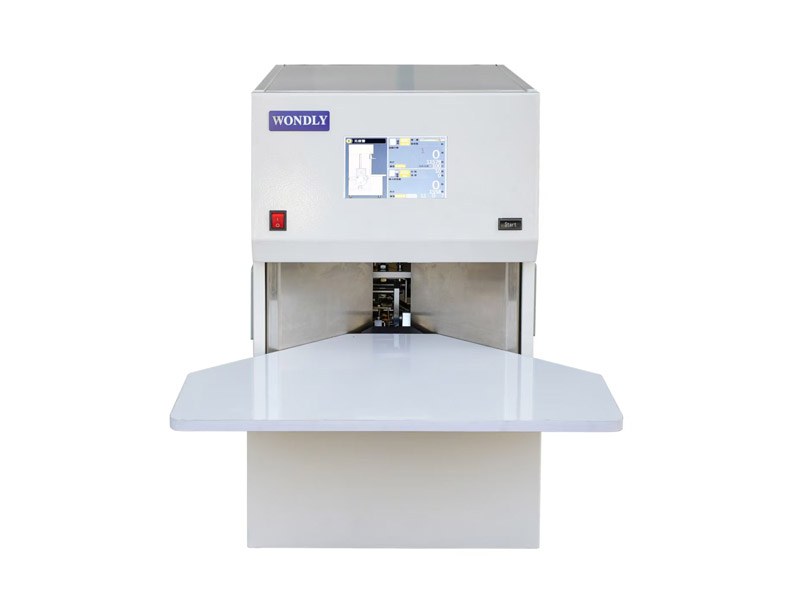

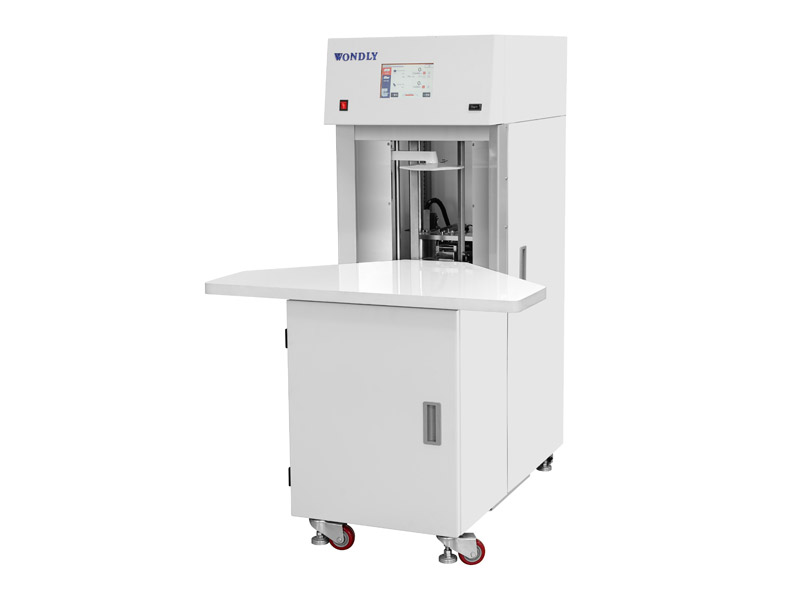

This Fully automatic High speed paper counting machine is the flagship product of our company’s intelligent high-end equipment.
High speed paper counting equipment is intelligent device for automatic paper counting and label insertion.
Product advantages of High speed paper counting machine :
Paper counting machine Can works with any types paper such as carbon paper, offset paper, coated paper, art paper, post cards, copy paper etc, high counting speed.
Paper counting equipment can mix counting different thickness of paper simultaneously.
| >> Details of WDLSZJ High speed paper counting machine |
1、The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. , Adopt the international most advanced module sports computer system technology 7 inch touch screen +
button dual function ，intuitive and simple user-machine interface and adopts imported servo motor control the main motor.
2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.
3.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile
4.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
5.It has a paper label fast changing structure
| >> Professional Fully automatic High speed paper counting machine manufacturer |
Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.
There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.
| >> Product Detail Images |

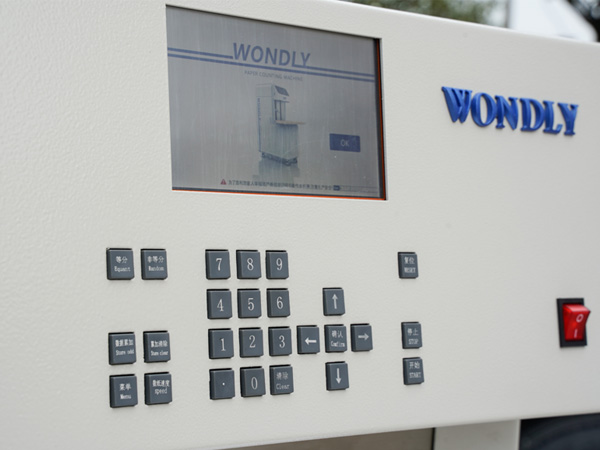

7 inch touch + button dual function computer

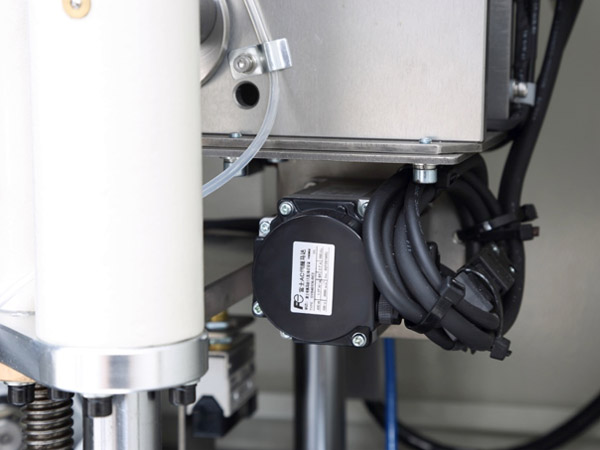

Side view of the Japan Fuji motor unit

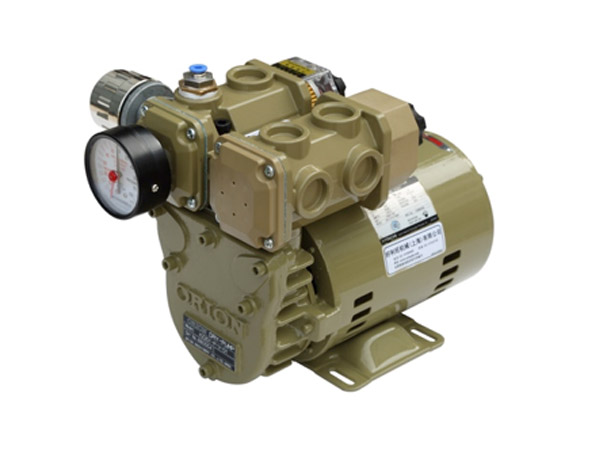

Japan Orion vacuum pump (Optional)

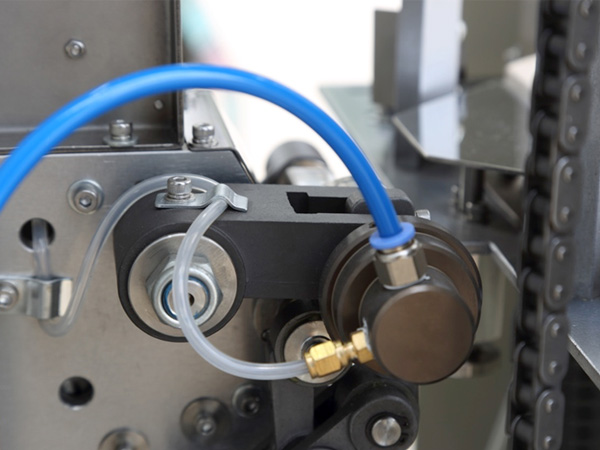

Side structure of the paper sucking unit
| >> Product Parameters |
|
paper thickness range |
22～230kg（Carbon paper,offset printing paper, coated paper,etc.） |
|
paper size |
Min.100X150mm、Max 546X788mm |
|
paper stacking height |
300mm（Max） |
|
Power Supply/voltage |
AC220±10V、50Hz |
|
Motor |
0.4KW |
|
Collecting table width |
580X900mm |
|
Collecting table width height |
760mm |
|
Machine size |
900（W）X1080（L）X1500（H） |
|
Machine weight |
230kg |
|
Label for paper in pile |
Width 5mm、Length 70m |
|
Consumed power ; |
600W |
| >> Paper counting machine FAQ : |
1. Q: Are you a paper counting machine manufacturer ?
A: Yes we have been paper counting machine manufacturer such machines over 20 years .
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service
