Double adhesive paper counting machine

This Fully automatic High speed Double adhesive paper counting machine is the flagship product of our company’s intelligent high-end equipment.
It includes industrial computer with 8 inch touch color screen for convenient human-computer interaction and stable and low noise imported brand high-end servo motor.

Applicable Industries: Manufacturing Plant, Printing Shops

Model: WDLSZJ-L Paper Sheet Counting Machine
Factory: Rui'an Wondly Printing Machinery Co, Ltd 【Made in China】
Wondly Machinery is the China professional manufacturer of Automatic paper counting machine

>> Details of Fully automatic Paper Sheet Counting Machine

1.The Paper Sheet Counting Machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. With superior performance,it has a 7-inch color screen computer, intuitive and simple user-machine interface and adopts imported servo motor control the main motor.
2.Any kind and any thickness of paper within the parameter range can be precise and high-speed counting. Special paper depending on the actual situation.
3.The Paper Sheet Counting Machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper. It can edit and save 99 program groups, each program group can edit a different number of papers;The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;The specified number counting function is for sorting out the required number of paper from the paper-pile.
4.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.

5.It has a paper label fast changing structure.

>> Professional Fully automatic Paper Sheet Counting Machine manufacturer

Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.

Product Application
Printing factory, packing factory, paper product factory, newspaper industry, stamp industry, examination paper, plastics industry, stationery, etc.

Production Equipment
Baoji Lathe 5, Hangzhou Drilling 3, Hangzhou Grinder 2, High-precision CNC Gantry Machining Center 2 sets, various types of small bench drills

Production Market

There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.

>> Product Detail Images

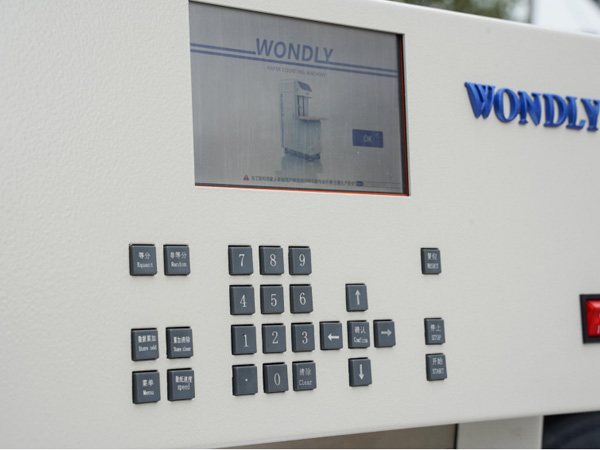

7 inch touch screen

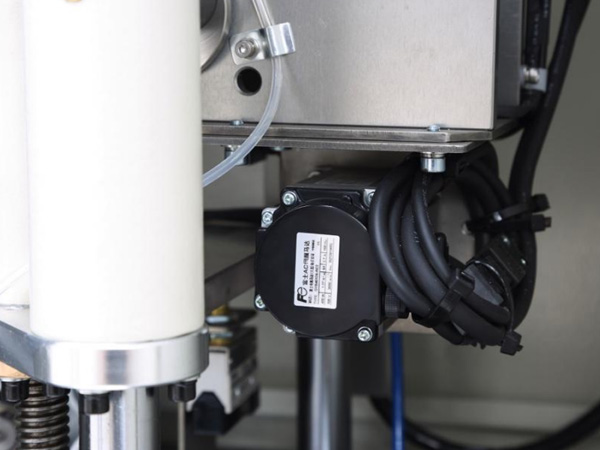

Side view of the Japan Fuji motor unit

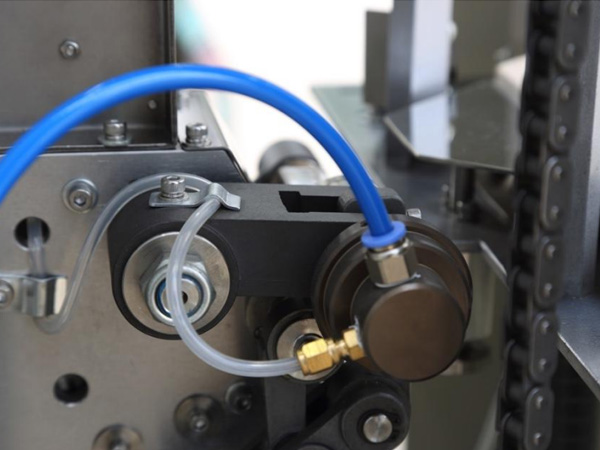

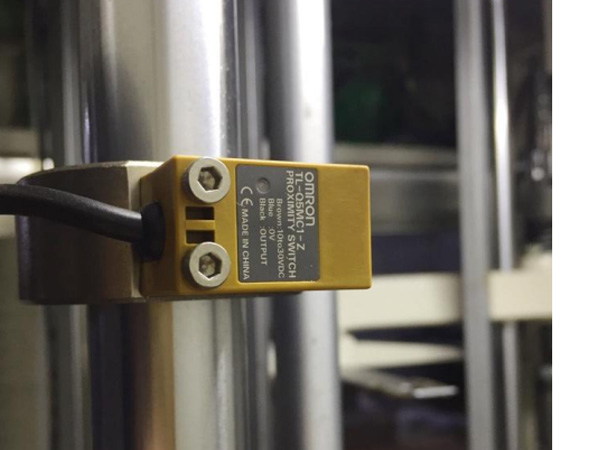

Structure of the paper pressing areaUsing Omron limit sensor

>> Product Parameters

Paper thickness range	22 ～ 230g/m （ Carbon paper,offset printing paper, coated paper,etc.）
paper size	Min.100X150mm、Max 700X1100mm
paper stacking height	300mm（Max）
Power Supply/voltage	AC220±10V、50Hz
Motor	0.4KW
Collecting table width	1200X1300mm
Collecting table width height	760mm
Machine size	1300（W）X1700（L）X1500（H）
machine weight	230kg
label for paper in pile	Width 6mm、Length 100m
consumed power	600W

>> Paper counting machine FAQ :

1. Q: Are you a paper counting machine manufacturer ?
A: Yes we have been paper counting machine manufacturer such machines over 20 years .
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service.
