QZYK1300DGF Fully automatic High Speed Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, etc.
QZYK1300DGF ‘DaLiWang’ paper cutting machine working type is 150KG flywheel driven by the main motor ，and adopts the gear of electromagnetic clutch driving to complete the cutting.In this way, it makes the material range wider and cutting power stronger, such as PVC、gray board、honeycomb paper.This machine breaks the traditional paper cutting machine can only cut a few simple and easy cutting materia.
| >> Details of Fully automatic high-speed Paper Cutting Machine |
Main Performance
1. Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction
2.display with blue LCD screen 10.4inches in Taiwan. computer interface using user-friendly design, allows the operator to easily operate Mige，servosystem is used as paper feeding system，and locateon presicion up to ±0.01mm.
3.full machine control part of the main low-voltage electrical appliances imported Schneider.
4.Hydraulic some of the pressure adjustable.
5.The frame structure of the international popular split, effectively increasing the machine cutting precision, user-friendly maintenance.
6.chrome work platform, saving the user's maintenance time, extend its life.
7. work platform equipped with inflatable structures to facilitate the pushing of paper and feed.
8.with a highly reliable protection of the six groups of grating, ensuring operator safety.
9. hook-like structure mounted knife, make easy work tool changes.
10.high-precision, high rigidity box-type paper sector, the wiring of the double-rail to ensure that the paper feed precision.
| >> Professional Fully automatic high-speed Paper Cutting Machine manufacturer |
Our Product
Paper counting machine , paper Sheets counter ,Label counter, Ticket counting machine, paper cutting machine etc. Awarded the Zhejiang Province Science and Technology Small and Medium sized Enterprise Certificate and the National High tech Enterprise in 2023.
There are more than 50 agents in the country, and there are corresponding agents in Southeast Asian countries, and they establish cooperative relations with most domestic foreign trade companies.
| >> Product Detail Images |
Knife bar ejection device

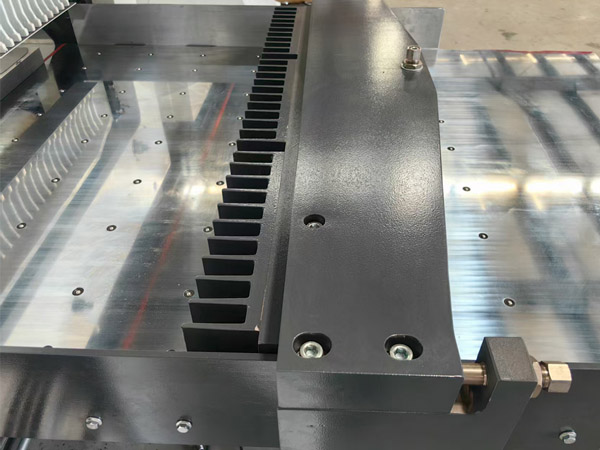

slotless workbenches
Cutting 2MMPVC

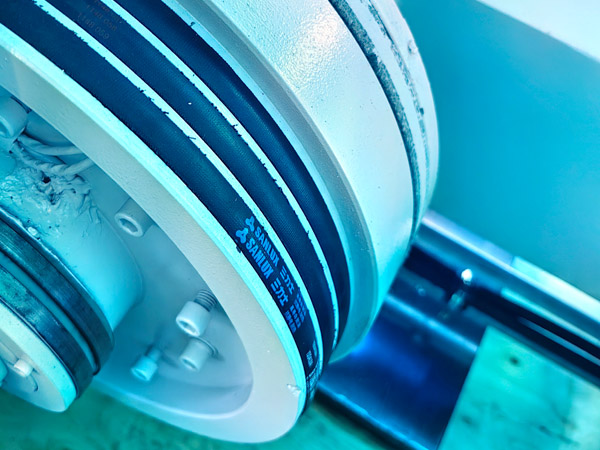

Heavy duty flywheel
| >> Product Parameters |
|
Cuttign width |
130 cm |
|
Cutting height |
13 cm |
|
Cutting length |
130 cm |
|
Main motor power |
4.0 kw |
|
Weight |
3800 kg |
|
width with sideway |
280 cm |
|
/ |
250 cm |
|
Table height |
90 cm |
|
Cutting speed |
45 times |
|
Overall dimensions |
280*145*191 cm |
|
Voltage(three-phase) |
361-399 V |
|
Wire size |
2.5 mm2 |
