Main Performance of Digital Pa…
Paper cutting machineMain Perf…
Main Performance ofPaper cutt…
Cuttign width cm |
170 |
Cutting height cm |
16.5 |
Cutting length cm |
170 |
Main motor power kw |
5.5 |
Weight kg |
6500 |
width with sideway cm |
370 |
cm |
315 |
Lehgth cm |
310 |
Table height cm |
90 |
Cutting speed times |
45 |
Overall dimensions cm |
325*160*220 |
Voltage(three-phase) V |
361-399 |
Wire size mm2 |
2.5 |
N O. |
Configuration |
Brand Model |
Origin |
1 |

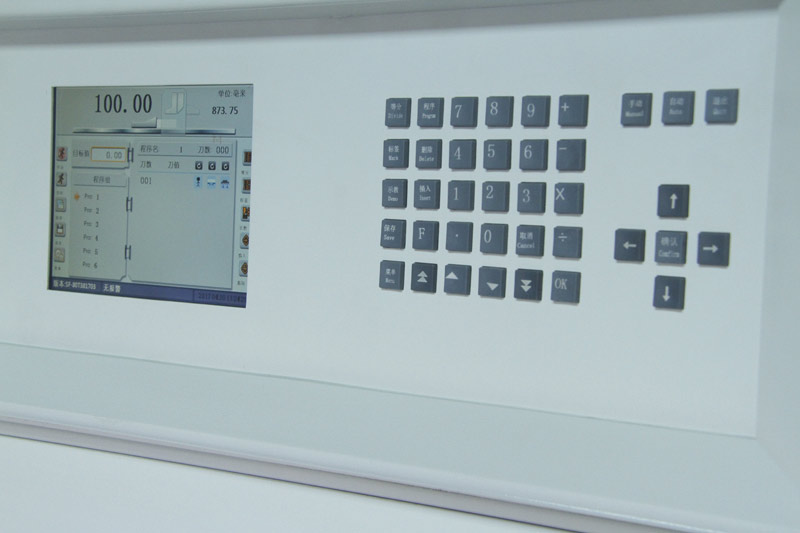

10.4 -inch touch screen display |
AU |
Taiwa |
2 |
Computer |
Industry Computer |
Taiwa |
3 |
Motherboard chipset |
.ATMEL |
United States |
4 |
Cast |
Resin sand HT250 |
henan |
5 |
Worktable |
No fume plated chromium worktable |
China |
6 |
Paperfeedmotor |
servosystem |
Japan |
7 |
Feed screw |
ABBA |
Taiwa |
8 |
Guide |
ABBA |
Taiwa |
9 |
The blade |
Love Keith |
China-Germany |
10 |
The turbine |
Kors |
Tianjin |
11 |
Bearing |
UBC |
Joint venture |
12 |
Switch |
Mowller |
Germany |
13 |
Switch |
Schneider |
France |
14 |
The switch power |
Mingwei |
Taiwan |
15 |
Locating switch |
Panasonic |
Japan |
16 |
Locating switch |
Schneider |
France |
17 |
Air pump |
The dense |
Joint venture |
18 |
Electrical |
Schneider |
France |
19 |
Linking Post |
Weidmuller |
Germany |
20 |
Bridge retifier |
Toshiba of Japan |
Japan |
21 |
Sealing ring |
Switzerlang |
The Swiss |
22 |
Hydraulic pump |
OT |
Italy |
