Main Performance Paper cutting machine
Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction.
Cuttign width cm |
130 |
Cutting height cm |
13 |
Cutting length cm |
130 |
Main motor power kw |
4.0 |
Weight kg |
3800 |
width with sideway cm |
280 |
cm |
250 |
Lehgth cm |
249 |
Table height cm |
90 |
Cutting speed times |
45 |
Overall dimensions cm |
280*145*191 |
Voltage(three-phase) V |
361-399 |
Wire size mm2 |
2.5 |
序 号 N O. |
配 置 Configuration |
品 牌 型 号 Brand Model |
产 地Origin |
1 |

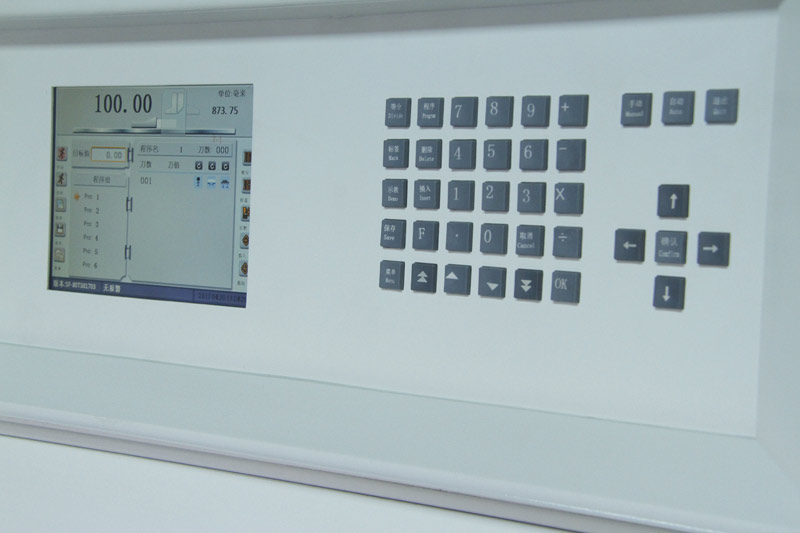

10.4 -inch touch screen display |
AU |
日本合资 Japanese join |
2 |
电脑 Computer |
工业电脑 Industry Computer |
上海 Shanghai |
3 |
主板芯片 Motherboard chipset |
英特 Intel |
美国 United States |
4 |
铸件 Cast |
HT250树脂砂 Resin sand HT250 |
河南 henan |
5 |
工作平台 Worktable |
无槽镀铬工作平台 No fume plated chromium worktable |
中国 China |
6 |
送纸电机 Paperfeedmotor |
富士 Fuji |
日本 Japan |
7 |
送纸丝杆 Feed screw |
ABBA
|
台湾 Taiwa |
8 |
导轨 Guide |
ABBA |
台湾 Taiwa |
9 |
刀片 The blade |
爱凯思 Love Keith |
中德合资 China-Germany |
10 |
涡轮 The turbine |
柯尔 Kors |
天津 Tianjin |
11 |
轴承 Bearing |
UBC |
中美合资 Joint venture |
12 |
开关 Switch |
金钟-墨勒 Mowller |
德 国 Germany |
13 |
开关 Switch |
施耐德 Schneider |
法国 France |
14 |
开关电源 The switch power |
明纬 Mingwei |
台 湾 Taiwan |
15 |
限位开关 Locating switch |
松下 Panasonic |
日本 Japan |
16 |
限位开关 Locating switch |
施耐德 Schneider |
法国 France |
17 |
气泵 Air pump |
森森 The dense |
中外合资 Joint venture |
18 |
低压电器 Electrical |
施耐德 Schneider |
法国 France |
19 |
接线端子 Linking Post |
魏德米勒 Weidmuller |
德 国 Germany |
20 |
整流桥堆 Bridge retifier |
日本的东芝 Toshiba of Japan |
日 本 Japan |
21 |
密封圈 Sealing ring |
瑞士密封圈 Switzerlang |
瑞士 The Swiss |
22 |
液压泵 Hydraulic pump |
OT |
意大利(可选) ltaly |
