Main Performance of Digital Pa…
Paper cutting machineMain Perf…
Main Performance ofPaper cutt…
Cuttign width cm |
130
|
Cutting height cm |
13
|
Cutting length cm
|
130 |
Main motor power kw
|
4.0 |
Weight kg
|
3800 |
width with sideway cm
|
280 |
cm
|
250 |
Lehgth cm
|
249 |
Table height cm |
90
|
Cutting speed times |
45
|
Overall dimensions cm |
280*145*191
|
Voltage(three-phase) V |
361-399
|
Wire size mm2 |
2.5
|
N O. |
Configuration |
Brand Model |
Origin |
1 |

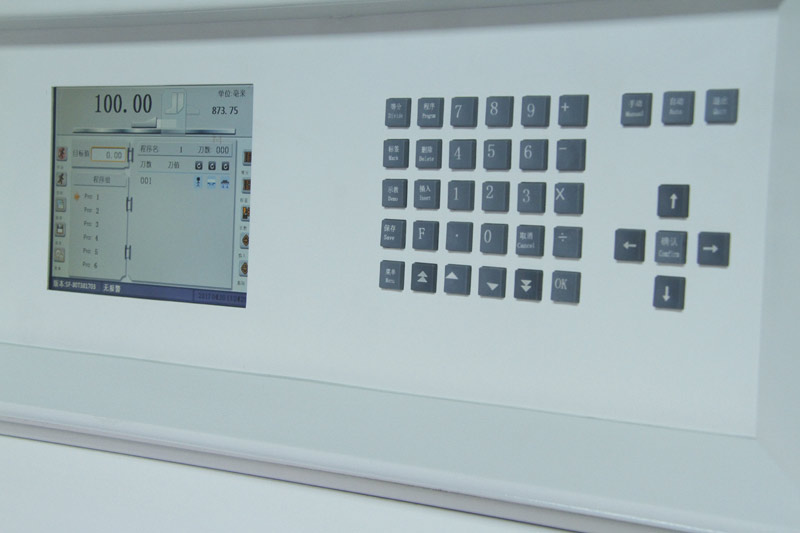

8 inch color LCD screen display |
AU |
Taiwa |
2 |
Computer |
Industry Computer |
Shanghai |
3 |
Motherboard chipset |
Intel |
United States |
4 |
Cast |
Resin sand HT250 |
henan |
5 |
Worktable |
No fume plated chromium worktable |
China |
6 |
Paperfeedmotor |
Dongyuan Servois |
Taiwa |
7 |
Feed screw |
TPI |
Taiwa |
8 |
Guide |
TPI |
Taiwa |
9 |
The blade |
Love Keith |
China-Germany |
10 |
The turbine |
Kors |
Tianjin |
11 |
Bearing |
UBC |
Joint venture |
12 |
Switch |
Mowller |
Germany |
13 |
Switch |
Schneider |
France |
14 |
The switch power |
Mingwei |
Taiwan |
15 |
Locating switch |
Panasonic |
Japan |
16 |
Locating switch |
Schneider |
France |
17 |
Air pump |
The dense |
Joint venture |
18 |
Electrical |
Schneider |
France |
19 |
Linking Post |
Weidmuller |
Germany |
20 |
Bridge retifier |
Toshiba of Japan |
Japan |
21 |
Sealing ring |
Switzerlang |
The Swiss |
22 |
Hydraulic pump |
spirit |
zhejiang |
