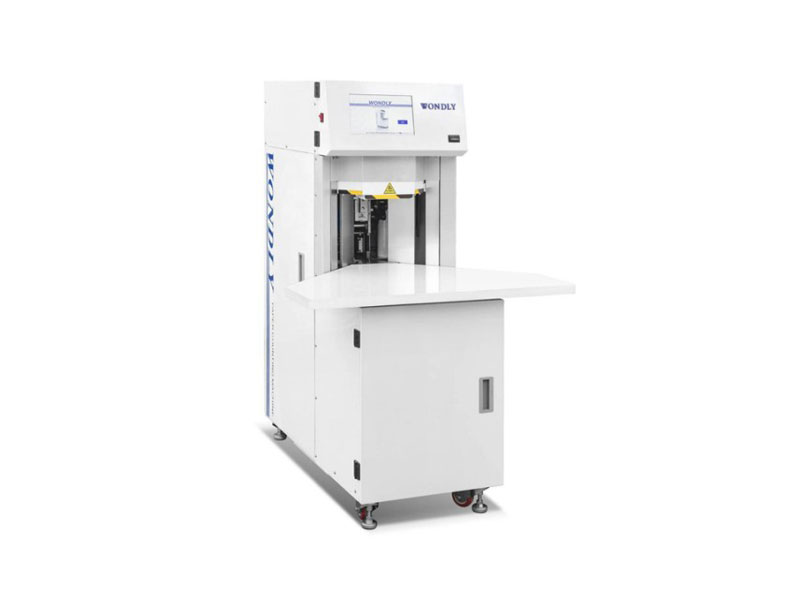

WDLSZJ-2 Automatic A4 Thick Paper Counting Machine
WONDLY supplies automatic high-speed A4 thick paper counting machine. This paper counting equipment automatically counts A4 sheets, offset paper, coated paper, board paper and thin cardboard from 80gsm to 400gsm. WONDLY Machinery is a professional manufacturer of automatic paper sheet counters in China.
- Max counting speed up to 1500 sheets/min
- Paper range 80gsm - 400gsm, supports thick paper counting
- Dual-blade counting, no corner crease, no marks on paper
- 10.2-inch imported AMT touch-screen HMI
- Equal & unequal tag insertion mode supported
- One-click self-adaptive balance & air-pressure setting
About This Paper Counting Machine
The WDLSZJ-2 automatic paper counting machine is a high-speed sheet-counting equipment independently developed by WONDLY Machinery for the printing and converting industry. It automatically counts A4 sheets, offset lithography paper, coated art paper, carbonless paper and thin board paper, delivering accurate batch counting without scratching or folding paper corners.
Equipped with a Japan Fuji AC servo motor, original British damping components and an imported AMT touch-screen computer, this A4 thick paper counter combines fast counting speed, stable performance and easy operation. It is widely used in printing factories, packaging plants, paper-product factories, newspaper houses, stamp & securities printing, examination paper processing and stationery manufacturing for pre-delivery batch counting.
As a professional paper counting machine manufacturer based in Rui'an, Zhejiang, China, WONDLY Machinery has over 20 years of post-press equipment manufacturing experience and exports to more than 50 countries. Whether you need a standard A4 sheet counter or a custom solution for thick paper, coated paper or plastic sheet counting, WONDLY can provide the right machine at factory-direct price.

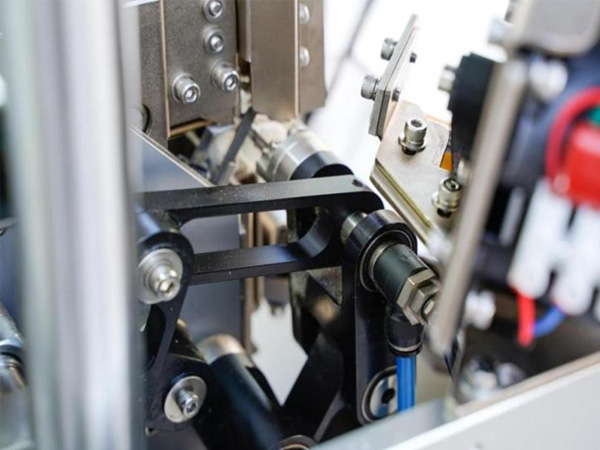

Machine Details & Core Components

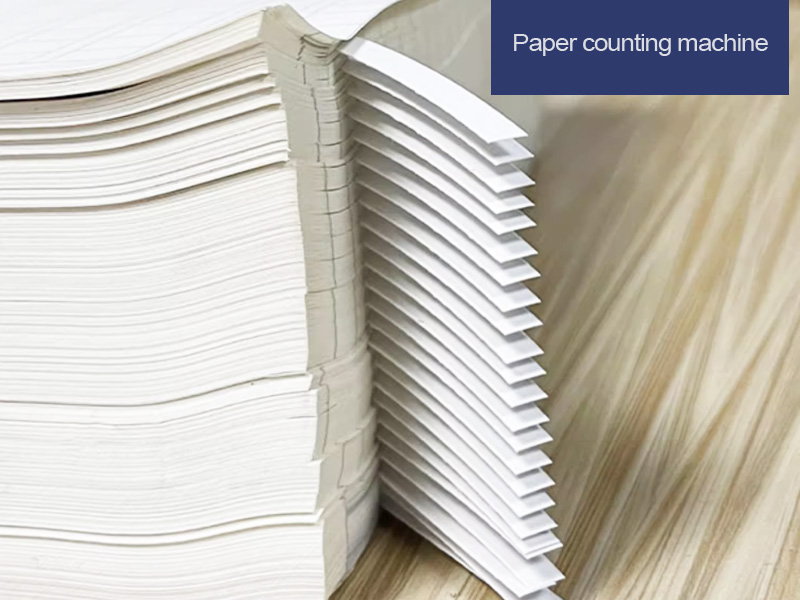

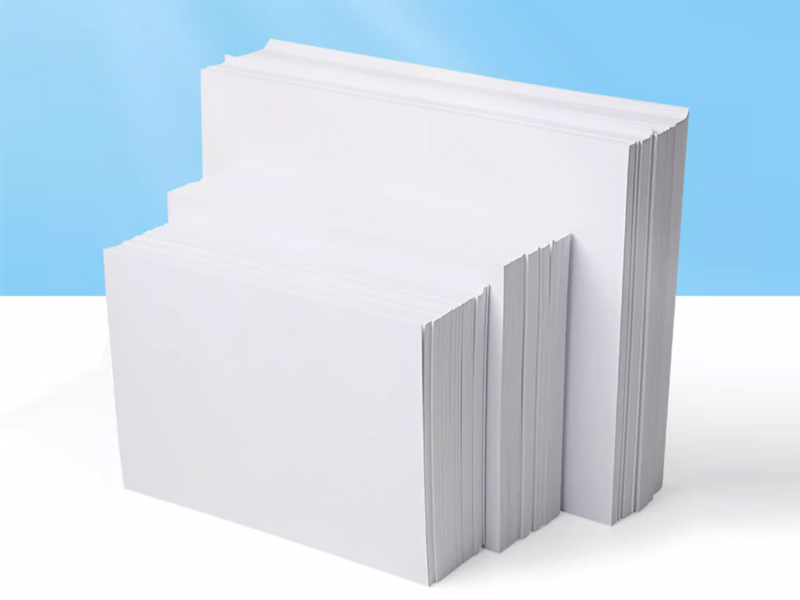

Applicable Paper Samples
This automatic paper counting machine can handle various paper stocks commonly used in the printing and packaging industry. Below are typical paper samples it can count:
Product Features & Core Advantages
1. Ultra-wide Paper Counting Range
Breaking the limitation of traditional thin-paper counters, this machine supports 80gsm to 400gsm thick paper, covering A4 paper, offset paper, coated art paper, carbon paper, thin board and various printing stocks. One machine handles multiple materials.
2. High-speed & Accurate Counting
Optimized transmission with dual-blade counting mechanism reaches up to 1500 sheets per minute while maintaining ultra-high accuracy. It dramatically improves batch counting efficiency and cuts manual labor cost for printing and packaging factories.
3. Zero Damage Paper Protection
Innovative zero-fold-angle and zero-bending-angle structure, paired with British original damping and Fuji servo control, ensures no creases, scratches or indent marks on paper corners during counting. Ideal for finished-paper pre-delivery inspection.
4. Flexible Tag Insertion
Supports both equal-distance and unequal-distance tag insertion. Users can freely adjust tag intervals according to packaging and batch requirements, making it easy for sorting, packing and inventory counting.
5. Intelligent One-click Operation
No complicated manual air-pressure or balance adjustment. Machine balance self-adapts with one click, and air pressure is fully software-configured. Operators can start production within minutes, even without prior training.

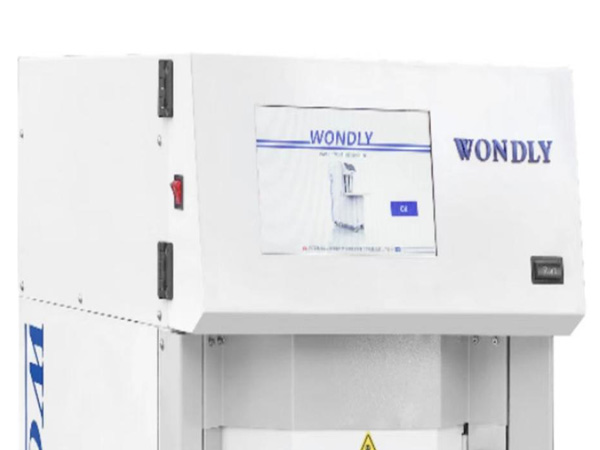

6. 10.2-inch AMT Touch Screen
Large imported AMT touch screen with classified menu design and built-in fault diagnosis. Operators can monitor running status and solve minor errors on their own, ensuring continuous production.
7. Imported Core Components
Japan Fuji AC servo motor and original British damping accessories guarantee stable power output, low failure rate and long service life under high-intensity industrial running conditions.
8. Wide Application & Cost-effective
Covers common paper sizes, compact footprint, suitable for small, medium and large printing houses. WONDLY provides factory-direct sales, one-year warranty and lifetime technical support.
Product Description
The WDLSZJ-2 automatic paper counting machine adopts a brand-new mechanical concept with zero-fold-angle and zero-bending-angle sheet-counting process. It breaks through traditional paper counters which only handle thin-sheet stock, and can reliably process paper weight from 80gsm up to 400gsm.
Equipped with a double-blade counting mechanism, the machine delivers accurate counting without scratching or leaving indent marks on paper corners, making this thick-paper counting unit ideal for finished-paper pre-delivery inspection in printing plants. It supports flexible equal-interval and unequal-interval tag insertion for batch separation in variable production workflows.
The 10.2-inch imported AMT touch screen provides intuitive human-machine interaction, classified menu navigation and built-in fault diagnosis. Hardware air-pressure and balance adjustment is eliminated: machine balance adapts by one-click software self-adaptation and air-pressure parameters are fully software-configurable.

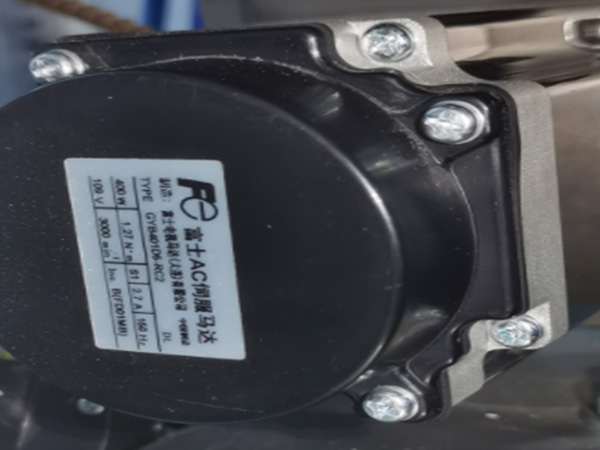

Key imported components include a Fuji AC servo motor from Japan and an original British damping assembly for stable long-term industrial-grade operation.
Common Applications of This Paper Counting Machine
Automatic paper counting machines have become essential post-press equipment for any plant handling sheet-fed paper production. This WONDLY paper counter is suitable for a wide range of scenarios:
- Printing factories: Batch counting of finished A4 sheets, offset leaflets, books, manuals and catalogs before packing.
- Packaging factories: Counting carton blanks, coated paper sheets and board paper for box-making lines.
- Paper-product plants: Counting notepads, exercise books, envelopes and stationery in batches.
- Newspaper industry: Fast counting of folded newspapers and flyers after printing.
- Stamp & securities printing: High-precision counting of high-value secure printing products.
- Examination paper processing: Accurate counting of answer sheets, test papers and confidential documents.
- Plastic sheet counting: Can be configured for thin plastic sheets, films and other non-paper materials.
- Stationery manufacturing: Counting letterhead, copy paper, printing paper reams for retail packaging.
Technical Specifications
| Paper Thickness Range | 30 - 210 g/m² (carbon paper, offset paper, coated paper etc.) |
|---|---|
| Paper Size | Min: 100 × 150 mm | Max: 546 × 788 mm |
| Max Paper Stacking Height | 300 mm |
| Max Counting Speed | Up to 1500 sheets/min |
| Power Supply | AC 220 ± 10V, 50Hz |
| Consumed Power | 600 W |
| Collecting Table Dimension | 580 × 900 mm |
| Collecting Table Height | 760 mm |
| Overall Machine (W×L×H) | 900 × 1080 × 1500 mm |
| Machine Weight | 230 kg |
| Label Tape Specification | Width: 6 mm, Length: 100 m |
| Control System | 10.2-inch imported AMT touch screen |
| Drive Motor | Japan Fuji AC servo motor |
Product Video
Watch the WDLSZJ-2 paper counting machine running in our factory. It shows auto-feeding, high-speed counting and automatic tag insertion in real production.
Why Choose WONDLY as Your Paper Counting Machine Supplier?
When sourcing paper counting machines from China, buyers face many choices in quality, price and after-sales support. WONDLY Machinery has built its reputation over 20 years of post-press equipment manufacturing and export. Here is why global printers and packaging distributors choose us:
- Factory-direct pricing: No trading-company markup. Our own production lines in Rui'an, Zhejiang mean you get wholesale pricing directly from the manufacturer.
- Professional R&D: National High-tech Enterprise and Zhejiang Science-Technology-based SME. Multiple invention and utility-model patents on paper-counting structure.
- Stable quality: Every machine passes running tests and precision inspection before packing. CE-certified production system.
- Fast lead time: Standard machines ship within 15-25 working days after deposit. OEM orders usually take 30-35 days.
- Global export experience: Our paper counting machines are already exported to 50+ countries across Europe, North America, Southeast Asia, Middle East and South America.
- OEM/ODM friendly: Custom paper size, counting speed, tag insertion and packaging are available for volume buyers.
Packing, Shipping & Lead Time
Standard export packing uses a strong plywood wooden case, with the machine wrapped in moisture-proof film and fixed with steel straps to avoid transport damage. Spare parts, tools and operation manual are packed in a separate box inside the wooden case. We ship from Ningbo or Shanghai port (FOB, CIF or DDP terms depending on buyer preference).
- Packing: Plywood wooden case, with moisture-proof film and steel straps.
- Lead time: Standard model 15-25 working days after deposit; OEM/custom model 30-35 days.
- Warranty: 1 year warranty, free spare parts for quality-caused failure within warranty period.
- After-sales: 24-hour online technical support; overseas engineer service available by request.
- Samples: Video inspection or on-site factory visit welcome before order.
Manufacturer, Workshop & Certificates
Our Certificates
About WONDLY Machinery
Rui'an Wondly Printing Machinery Co., Ltd is a professional Chinese manufacturer of paper counting machines and post-press equipment with over 20 years of manufacturing history. Our company is certified as a National High-tech Enterprise and Zhejiang Science-Technology-based Small-Medium Enterprise. We own multiple invention patents and utility-model patents; products have passed CE certification and are exported to more than 50 countries and regions. We maintain over 50 domestic and overseas agents covering Southeast Asia and cooperate with numerous Chinese foreign-trade companies.

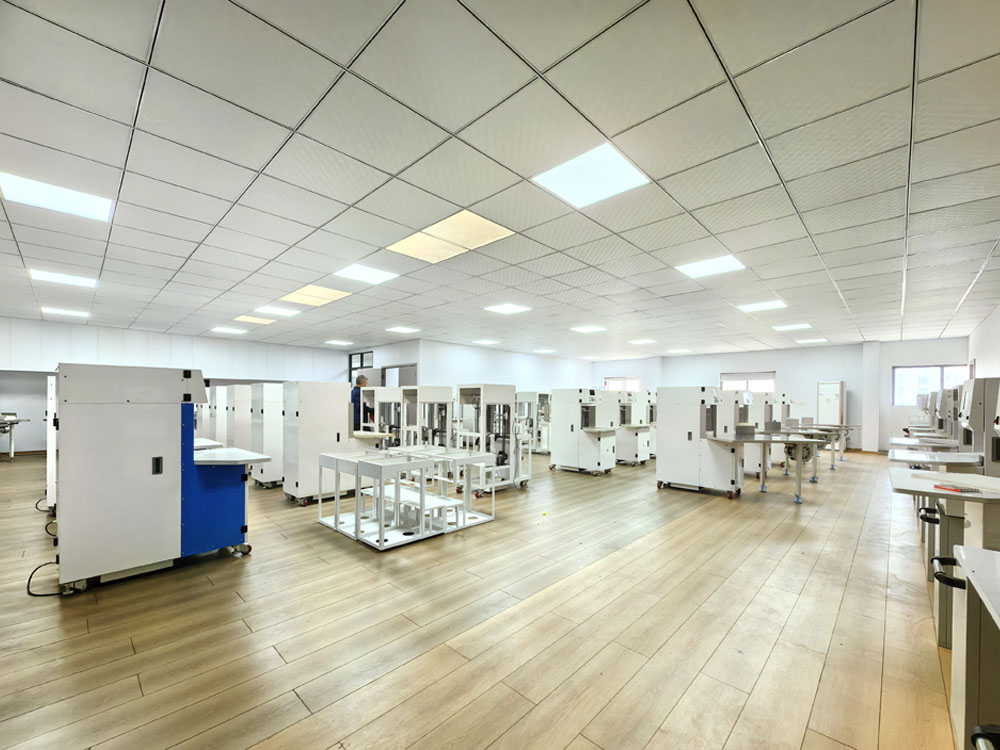

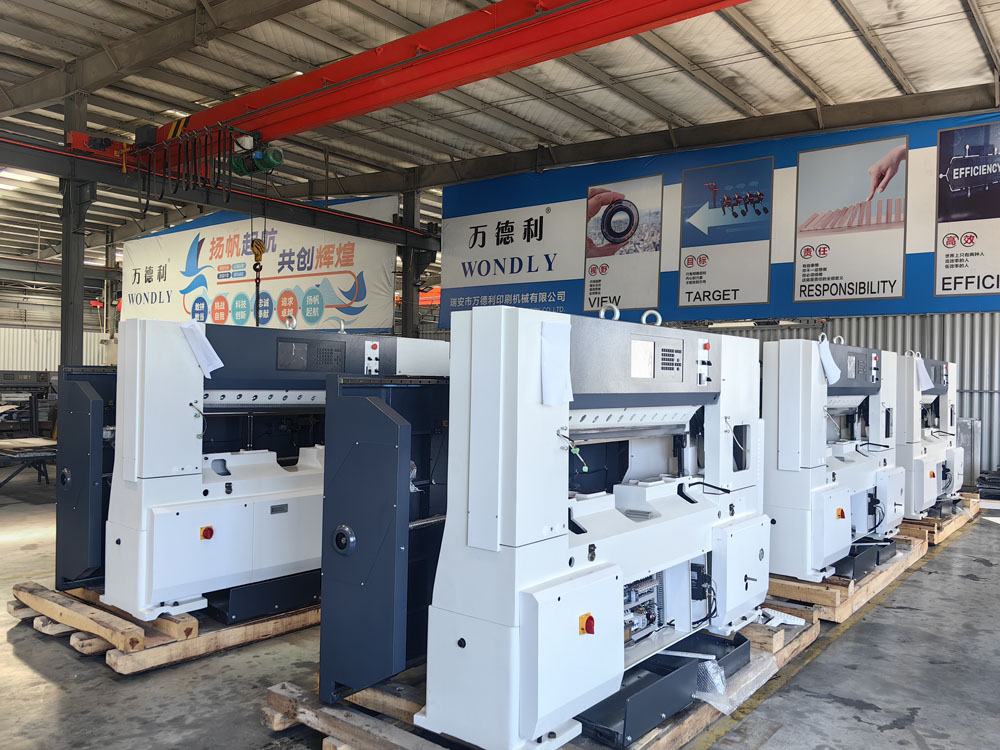

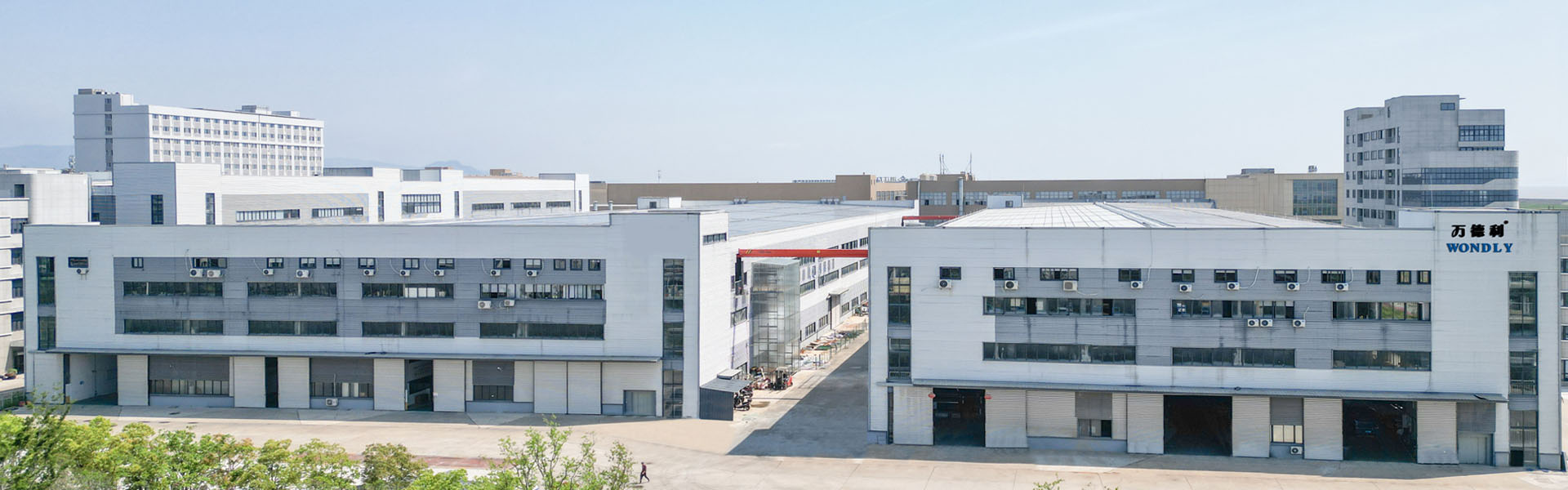

Production Workshop & Equipment
Our workshop is equipped with Baoji lathes, Hangzhou drilling machines, surface grinders, high-precision CNC gantry machining centers and various bench drills. Complete in-house processing capacity guarantees precise mechanical parts for paper counting machines. Our R&D team keeps upgrading the paper-counting core mechanism to meet thick-paper requirements from printing and converting customers.
Certificates: National High-tech Enterprise Certificate, Zhejiang Science-Technology-SME Certificate, CE Certificate, multiple patents for paper-counting structure.
