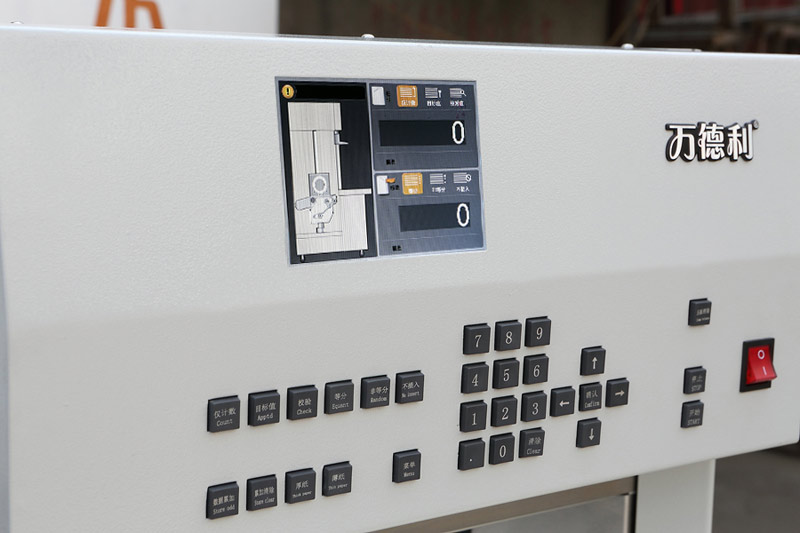

1.The paper counting machine is a high-tech product we committed to develop,with superior performance,it has a 7-inch color screen computer and servo motor control.
2.Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.
3.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile
4.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
5、It has a paper label fast changing structure
|
paper thickness range |
22～230kg（Carbon paper,offset printing paper, coated paper,etc.） |
|
paper size |
Min.100X150mm、Max 546X788mm |
|
paper stacking height |
300mm（Max） |
|
Power Supply/voltage |
AC220±10V、50Hz |
|
motor |
0.4KW |
|
Collecting table width |
600X600mm |
|
Collecting table width height |
760mm |
|
machine size |
900（W）X1080（L）X1500（H） |
|
machine weight |
230kg |
|
label for paper in pile |
Width 6mm、Length 100m |
|
consumed power ; |
600W |
|
America ARM Core CPU |
|
SDRAM：SAMSUNG DDR2，64MB |
|
FLASH ROM：SAMSUNG 64MB |
|
Listepping moto china |
|
TFT：Foxconn 5.6 Inch |
|
KEYPAD：OMRON |
|
Paper Count Motor：FUJI Servo Motor |
|
Air Pump Motor：china\korea |
|
IF Sensor：OMRON |
|
Hall Sensor：OMRON |
|
Switch Power：Taiwan Meanwell |
|
Cable：America TE |
